What Technical Details to Verify for Firefighting Drone Extinguishing Projectile Delivery Accuracy?

When our engineering team first tested projectile delivery systems ¹ three years ago, we watched a $50,000 suppressant payload miss its target by ten meters. The fire spread. Equipment was lost. That moment taught us accuracy is not optional—it is the difference between suppression and disaster.

To verify firefighting drone projectile delivery accuracy, check laser targeting precision (±2m tolerance), gimbal stabilization response time, payload release mechanism reliability, flight controller calibration for wind compensation, and thermal sensor resolution (minimum 640×512). Request documented test data showing performance in temperatures from -20°C to +50°C.

This guide breaks down the technical specifications you need to verify before purchasing or deploying a firefighting drone laser targeting precision ². We will cover targeting systems, software customization, environmental factors, and supplier documentation requirements.

How do I verify the precision of the laser targeting and gimbal stabilization systems on my firefighting drone?

During production line testing at our facility, we discovered that even minor gimbal lag causes projectile misses of five meters or more flight control software ³. The problem compounds when smoke obscures visual references. Buyers who skip targeting verification often face costly field failures ISO 17025 certification ⁴.

Verify laser targeting by requesting beam divergence specs (under 1 mrad), ranging accuracy (±1m at 500m), and gimbal stabilization response time (under 50ms). Test the system in simulated smoke conditions with thermal overlay. The gimbal must maintain ±0.02° stability during sudden movements and payload release recoil.

Understanding Laser Targeting Components

Laser targeting systems in firefighting drones combine three core elements: the laser rangefinder, the aiming beam, and the thermal imaging sensor ⁵. Each component must work together seamlessly.

The laser rangefinder measures exact distance to the target. This data feeds into the flight controller, which calculates the optimal release point. Without accurate ranging, even perfect aiming produces misses.

Our rangefinders use 905nm wavelength lasers. This wavelength penetrates smoke better than visible light. We test each unit at distances from 50m to 1000m before shipment.

Gimbal Stabilization Requirements

The gimbal holds the camera and laser steady while the drone moves. A three-axis gimbal compensates for pitch, roll, and yaw movements. For firefighting applications, the gimbal must also absorb recoil from projectile release.

Testing Protocol for Targeting Systems

Request a live demonstration or video documentation showing the following tests:

First, static accuracy test. The drone hovers at 100m altitude. The operator aims at a ground target. Measure the laser dot position against the intended aim point.

Second, dynamic accuracy test. The drone flies at 5m/s while maintaining aim on a fixed target. Record any drift or jitter in the laser position.

Third, smoke penetration test. Place smoke generators between the drone and target. Verify the thermal overlay correctly identifies the target through the obscurant.

Thermal Sensor Integration

Thermal cameras detect heat signatures invisible to standard cameras. Resolution matters significantly. A 640×512 sensor provides 327,680 individual temperature measurement points. Lower resolution sensors may miss small hotspots.

We integrate thermal data directly into the targeting solution. The system highlights the hottest point and suggests optimal aim position. This reduces operator workload during high-stress situations.

Can I customize the flight control software to optimize the timing of my projectile release?

When we export drones to US fire departments, software customization requests arrive weekly. Most buyers want to adjust release timing for their specific suppressant payload weights. The answer is yes—but the customization must follow strict protocols.

Yes, flight control software can be customized for projectile release timing. Key adjustable parameters include release delay offset, trajectory prediction algorithms, and wind compensation factors. Request API documentation and ensure the manufacturer provides source code access or dedicated customization support with engineering validation.

Core Software Parameters for Release Timing

The flight controller calculates release timing using multiple inputs. Understanding these parameters helps you specify customization requirements accurately.

Release delay offset accounts for mechanical lag between the command signal and actual payload release. Different release mechanisms have different delays. Servo-actuated releases typically show 20-50ms delay. Electromagnetic releases respond in under 10ms.

Trajectory prediction calculates where the projectile will land based on current drone position, velocity, altitude, and payload ballistics. The algorithm must account for projectile aerodynamics.

Wind Compensation Algorithm Customization

Wind compensation represents the most requested customization category. Standard algorithms use current wind readings. Advanced algorithms predict wind changes along the projectile flight path.

Software Access Levels

Different manufacturers offer different levels of software access. Clarify this before purchase.

Closed system means no user modifications. Parameters adjust only through manufacturer support.

Parameter access allows users to change numerical values within preset ranges. This covers most operational needs.

API access provides programmatic control for integration with command systems. Fire departments with existing dispatch software often require this level.

Source code access enables complete customization. This requires in-house software engineering capability.

Validation Requirements After Customization

Any software modification requires validation testing. We provide a standard validation protocol with each software update.

The protocol includes boundary testing, failure mode analysis, and field accuracy verification. We recommend minimum 50 test drops with the modified software before operational deployment.

Our engineering team offers remote support during validation. We can adjust parameters in real-time based on field test results. This iterative approach achieves optimal accuracy faster than independent testing.

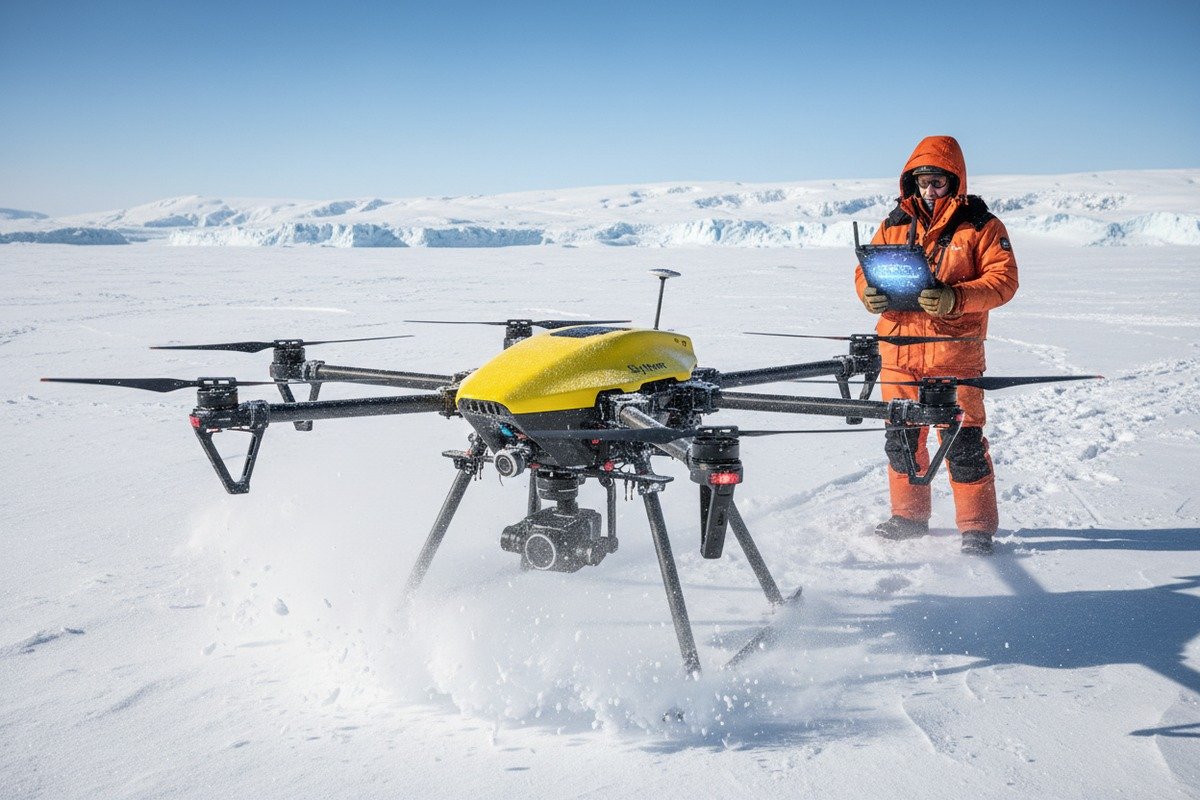

What impact do wind resistance and payload release mechanisms have on my drone's strike accuracy?

Our test pilots in Xi'an regularly fly in challenging wind conditions. We have logged over 3,000 test drops across wind speeds from calm to 25 knots. The data clearly shows that wind and release mechanism design dominate accuracy outcomes.

Wind resistance creates horizontal drift during projectile fall. At 15kt crosswind, a 4kg projectile released from 100m altitude drifts approximately 8 meters. Release mechanism type affects accuracy by ±2m due to variation in release velocity and direction. Servo mechanisms provide more consistent release than electromagnetic types in extreme temperatures.

Wind Effects on Projectile Trajectory

Wind affects both the drone and the falling projectile. The flight controller can compensate for drone drift. Compensating for projectile drift requires predictive calculation.

Projectile ballistic coefficient ⁷ determines wind sensitivity. Higher coefficient means less drift. Suppressant balls typically have low coefficients due to their spherical shape. Finned projectiles have higher coefficients and resist wind better.

Our F-K25 compatible release system accounts for wind drift automatically. The algorithm adjusts aim point upwind of the target. The adjustment amount depends on wind speed, projectile type, and release altitude.

Release Mechanism Comparison

Three primary release mechanism types exist for firefighting drones: gravity drop, servo-actuated, and electromagnetic.

Gravity drop systems simply release the payload holder. The projectile falls under its own weight. These systems work reliably in all temperatures but offer limited control over release timing precision.

Servo-actuated systems use motors to physically move the payload out of the holder. This provides consistent release velocity and direction. Our carbon fiber quick-release mechanism uses dual servos for redundancy.

Electromagnetic systems use magnetic force to hold payloads. Releasing current drops the payload instantly. However, extreme temperatures affect magnetic field strength, changing release characteristics.

Recoil Management

When a projectile launches rather than drops, recoil pushes the drone in the opposite direction. This movement affects subsequent targeting if multiple projectiles are carried.

Coaxial and octocopter designs handle recoil better than standard quadcopters. The additional motors provide faster stabilization recovery. Our heavy-duty models recover to targeting accuracy within 200ms of release.

Shooting mechanisms produce more recoil than dropping mechanisms. If your application requires propelled projectiles for horizontal delivery into building windows, specify recoil compensation requirements during procurement.

Environmental Durability Factors

Release mechanisms must function reliably in harsh conditions. Fire environments combine heat, smoke, moisture from suppression activities, and debris.

We use 7075-T6 aluminum and carbon fiber for all release mechanism components. These materials maintain strength up to 120°C continuous exposure. Seals protect electrical connections from moisture and particulates.

Request material specifications and environmental testing documentation. Mechanisms that fail in the field cannot be repaired during active firefighting operations.

What specific test data should I request from my supplier to confirm delivery reliability in high-temperature environments?

Our quality control team maintains test records for every drone we ship. When US distributors ask about heat tolerance documentation, we provide complete test certificates. Suppliers who cannot provide this data likely have not performed adequate environmental testing.

Request thermal chamber test certificates showing operation at +50°C for minimum four hours, projectile release accuracy data at elevated temperatures, battery performance degradation curves, and sensor calibration drift measurements. Verify tests were conducted by accredited laboratories with ISO 17025 certification.

Essential Test Documentation Categories

Supplier documentation should cover five categories: thermal endurance, accuracy under heat, component degradation, failure mode analysis, and field validation.

Thermal endurance testing places the complete drone system in a controlled chamber. Temperature increases gradually while monitoring all subsystems. The test continues until the drone either fails or reaches the rated temperature limit.

Accuracy testing under heat repeats the standard accuracy test protocol at elevated temperatures. Compare results to baseline room-temperature performance. Degradation should remain under 20% at maximum rated temperature.

Specific Data Points to Request

Laboratory Certification Requirements

Test data from uncertified laboratories has limited value. ISO 17025 accreditation ensures the laboratory follows standardized procedures and maintains calibrated equipment.

Request the laboratory's accreditation certificate number. Verify it covers the specific tests performed. Accreditation scopes vary—a laboratory certified for mechanical testing may not be certified for thermal testing.

Our test partners hold full accreditation for environmental simulation, electromagnetic compatibility, and performance verification. We include accreditation documentation with test certificates upon request.

Field Validation Data

Laboratory testing cannot replicate all real-world conditions. Field validation data demonstrates performance in actual firefighting scenarios.

Request documentation of deployment in similar conditions to your intended use. Industrial fire response differs from wildland firefighting. High-rise operations differ from ground-level suppression.

We maintain a database of deployment records from our customers who agree to share anonymized performance data. This real-world information supplements laboratory testing and identifies issues that controlled testing misses.

Interpreting Supplier Responses

How suppliers respond to documentation requests reveals their testing practices. Transparent suppliers provide data quickly with full detail.

Delayed responses may indicate the supplier is creating documentation after your request rather than retrieving existing records. Partial data suggests incomplete testing programs.

Our standard documentation package ships with every drone. Customers receive test certificates, calibration records, and quality control inspection reports without special requests.

Conclusion

Verifying firefighting drone projectile delivery accuracy requires systematic evaluation of targeting systems, software capabilities, environmental factors, and supplier documentation. Request specific test data, validate performance claims through demonstrations, and ensure your supplier provides engineering support for customization needs. The investment in verification prevents costly field failures.
